| 型号 Model | THA1500 | THB1500 | THC1500 |
| 输入电压 Input Voltage | DC 12V | DC24V | DC48V |
| 工作电压 Working Voltage | DC 9.5V-15.5V | DC20-30V | DC40-60V |
| 输入电流 Input Current | 125A | 62A | 31A |
| 转换效率 Conversion Efficiency | >85% | ||
| 持续输出功率 Continuous Power | 1500W | ||
| 峰值功率 Peak Power | 3000W | ||
| 输出电压 Output Voltage | AC 100V-120V/210-240V | ||
| 输出电流 Output Current | 13A/6.8A | ||
| 输出频率 Output Frequency | 50Hz-60Hz | ||
| 输出波形 Wave Form | 修正正弦波Modified Sine Wave | ||
| USB输出电压 USB Output Voltage | DC 5V(800mA) | ||
| 温度保护 Thermal Protection | ≥70℃ | ||
| 工作温度 Operating Temperature | 0℃～40℃ | ||
| 风扇制冷 Cooling | 智能静音风扇 By Smart Fan | ||
| 低压关闭电压 Under Voltage | 10±1V | 20±1 | 40±1 |
| 高压关闭电压 Over Voltage | 15±1V | 30±1 | 60±1 |
| 故障指示灯 Protection | 欠压：LED红灯亮，蜂鸣器响，重启恢复, Undervoltage :LED red light, Buzzerer alarm， Restart recovery |
||
| 过压：LED红灯亮，重启恢复 Overvoltage:LED red light, Restart recovery |
|||
| 过载、过温：LED红灯亮，重启恢复 Overload、High temperature: :LED red light, Restart recovery |
|||
| 输入反接：保险丝熔断 Reverse connect: Blown fuse |
|||
| 净重 Net Weight | 1940g | ||
| 毛重 Gross Weight | 2444g | ||
| 整机尺寸 Size | 295*130*65mm | ||
| 装箱数量 Carton | 560*360*340mm 10Piece/Carton | ||
| Mobile phones, car electronics, cameras, lighting, electric shavers, CD players, tablet computers, televisions, fans, rice cookers, vacuum cleaners, water heaters, electric drills, pumps, small washing machine，small printer 手机、车载电器、照相机、照明灯、电动剃须刀、 CD机、平板电脑、电视机、风扇，电饭煲，吸尘器，热水器，电钻 |
|||
THA1500 product parameter table

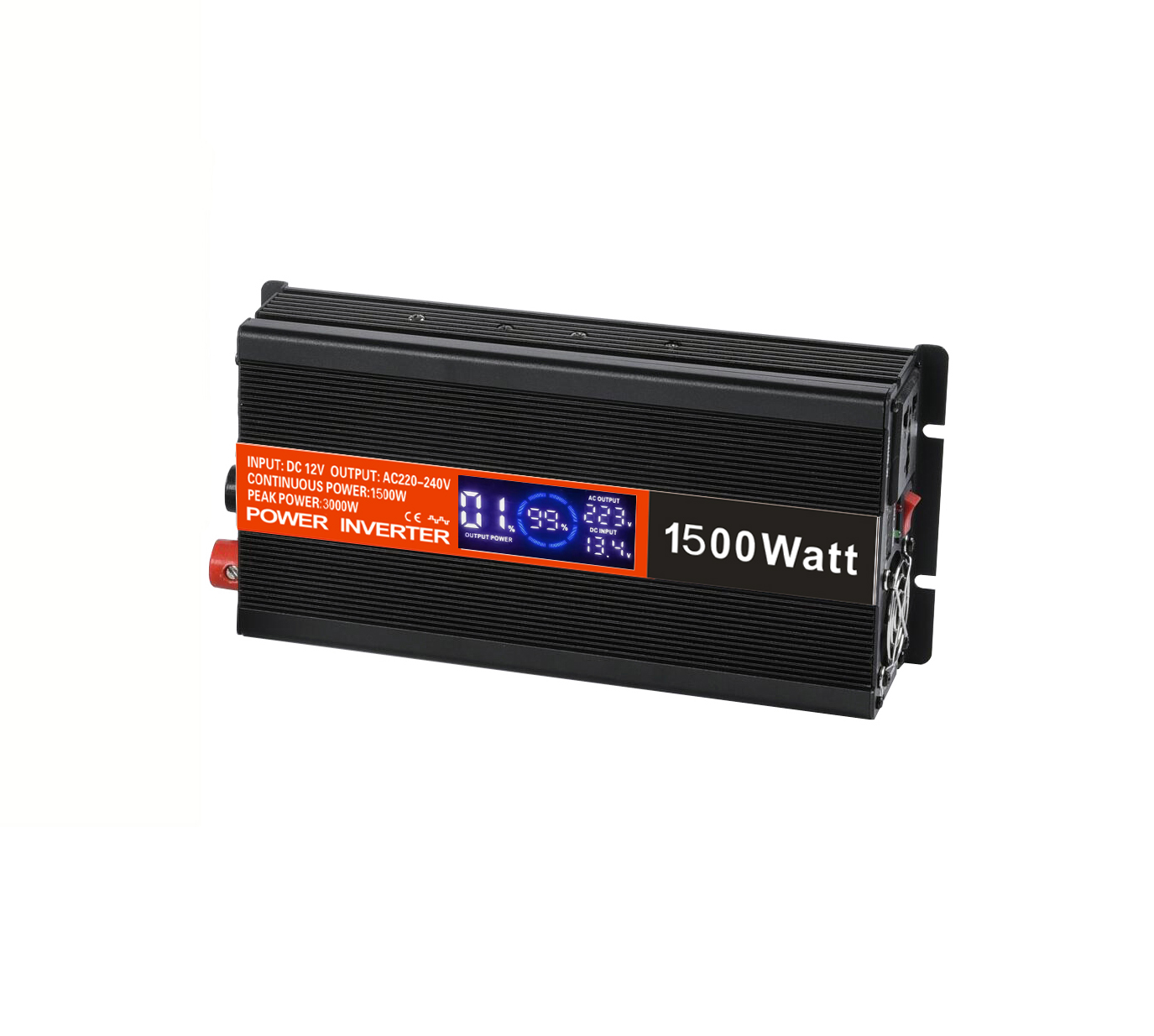

THA Series Power Inverter
This power inverter is modified sine wave inverter which converts DC power to AC power. Full power inverter with strong protections. Its output voltage is always within 10% of rated voltage until it shutdown for overload or other reasons.
Features:
●Protections: low-voltage, over voltage, over load, over temperature.
●Isolated circuit, strong impact resistance, constant voltage and stable output, low-interference.
●Advanced automatic constant circuit, prolong battery life.
●Perfect protection against battery under voltage, overload, short-circuit.
●Microprocessor control guarantees high reliability.
●Can work with inductive load such as air conditioner, motor door and so on.
●The special design of circuit and tough components protect the power inverter from being easily damaged, even when the starting power of that equipment is more than 3 times of that of the inverter.
●Having grounding devices to improve safety and excellent component to lower interference; inner fan is intelligent and will not work until the wattage reaches 1/3 of inverter.
●With 100% full power, efficiency reaching up to 85%.
●Isolated output.
●Soft start.
●USB charging port +5VDC, 500mA.
In addition to Modify Sine Wave Inverter, we also have Pure Sine wave Inverter products. If you have higher requirements for power, then Pure Sine Wave Inverter will be more suitable for you.
